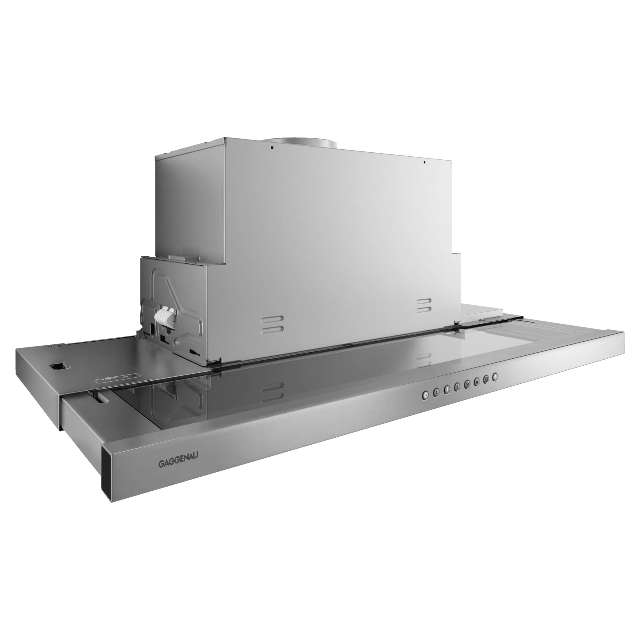

Gaggenau AF210192 - 200 Series Flat kitchen Hood 90 cm Stainless steel

 Output

• Performance and noise level, output level 3/Intensive:Air output according to DIN EN 61591.Sound power level according to EN 60704-3.Sound pressure level according to EN 60704-13.
• Air extraction:517 / 965 m³/h.57 / 71 dB (A) re 1 pW.
• Air recirculation:506 / 876 m³/h.62 / 69 dB (A) re 1 pW.
• Odour reduction air recirculation 91%.

• Controls at front.
• Three electronically controlled power levels and an intensive mode.
• Automatic function with sensor-controlled run-on function.
• Grease filter saturation indicator.
• Stainless steel grease filter, dishwasher-safe.
• Neutral white LED light (3500 K), continuously dimmable.
• Lamp output 3 x 1.5W LED light.
• Illuminance: 355 lx
• Light can be switched on separately.
• Fan technology with highly efficient, brushless DC motor.
• Integrated sound insulation for quiet operation.
• The fan is activated when the steam screen is extended.
• Patented technology for extension of the steam screen.
• Extendable steam screen 198 mm.
• Airflow-optimised interior for efficient air circulation and ease of cleaning.
• Patented easy mounting system for simple installation.
• The package includes an one-way flap.

• Energy efficiency class A at a range of energy efficiency classes from A to D.
• Energy consumption 41.4 kWh/year.
• Ventilation efficiency class A.
• Ilumination efficiency class A.
• Grease filter efficiency class B.
• Sound level min. 42 dB / max. 57 dB normal mode.

• Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the activated charcoal filter.
• The door of the upper cabinet must be fully open in order to change the activated charcoal filter.
• To be installed in an upper cabinet without base.
• The required cavity depth of the upper cabinet together with the lowering frame measures 335 mm.
• The required cavity height of the upper cabinet together with the lowering frame measures 600 mm.
• Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).
• Clearance above electric appliances min. 43 cm.
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.

• Total connected load 266 W.
• Connecting cable 1.8 m, pluggable.
• For air recirculation an external air recirculation module is required.

• Please reference the built-in dimensions provided in the installation drawings
