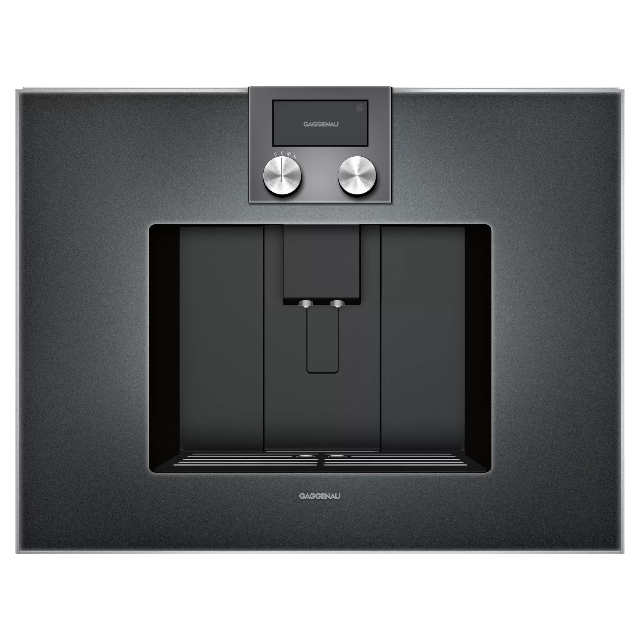

Gaggenau CM450102 - 400 Series Fully Automatic Espresso Machine 60 x 45 cm Anthracite

 Type of beverage

• Ristretto / 2 x Ristretto.Espresso / 2 x Espresso.Espresso Macchiato / 2 x Espresso Macchiato.Coffee / 2 x Coffee.Americano / 2 x Americano.Caffe Latte / 2 x Caffe Latte.Latte Macchiato / 2 x Latte Macchiato.Cappuccino / 2 x Cappuccino.Flat White / 2 x Flat White.Milk froth / 2 x Milk froth.Warm milk / 2 x Warm milk.Hot water / 2 x Hot water.

• Automatic door opening.
• Rotary knob and TFT touch display operation.
• Clear text display.
• Personalisation function, up to 8 beverages can be personalised and memorised.
• 4 beverage size settings, volume can be individually adjusted to match the size of the cup.
• 8 coffee strength levels from very mild to extra strong.
• Coffee: 3 levels.
• Hot water: 10 grades.
• 4 coffee-milk ratio levels.
• Adjustable grinding level.
• Height-adjustable coffee dispenser 7 cm to 15 cm.
• Easy access to water tank, milk and coffee bean container behind the door.

• Maintenance-free grinding unit with ceramic discs.
• Separate drawer for second ground coffee type.
• Water pump with 19 bar pressure.
• Double grinding and brewing cycles for extra intensity for one beverage.
• Double grinding and brewing cycles for two beverages.
• Dispenser with integrated milk system.
• Insulated stainless steel milk container for up to 0.5 litres.
• Integrated lightning with LEDs.
• Removable bean container with aroma protecting lid for 500 g allows for an effortless exchange of different types of coffee beans.
• Automatic adjustment of ground coffee quantity.
• Removable 2.4 litre water tank.
• Electronic water filter exchange indicator.
• Electronic fill level control for drip tray and container for coffee dregs.
• Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
• The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country “ for further information please check: www.home-connect.com

• Child lock.

• Fully automatic rinse programme when machine is turned on/off.
• Automatic steam cleaning of the milk system after every beverage.
• Automatic cleaning and descaling programme.
• Emptying programme to prepare the appliance for holiday or transportation.
• Empty-grinding function to remove coffee residues from the system when switching bean types.
• Removable brewing unit.
• Coffee dregs container and drip tray dishwasher-safe.
• Milk frother dishwasher-safe.

• Door hinge not reversible.
• Left-hinged
• The façade of the appliance extends 47 mm from the furniture cavity.
• When installing in a corner a side clearance is required.
• Door opening angle appr. 110° (delivery status) - mounting distance to the wall has to be at least 350 mm.
• Door opening angle appr. 155° - mounting distance to the wall has to be at least 650 mm.
• Door opening angle appr. 92° - mounting distance to the wall has to be at least 100 mm (spare part No. 00636455).
• Installation directly above 14 cm high WS in 59 cm standardised niche.
• The LAN port can be found at the back on the lower right side.
• Special accessories (order as spare parts):Part No. 17000705 Water filterPart No. 00311819 Descaling tabletsPart No. 00311769 Cleaning tabletsPart No. 00636455 Door hinge restrictor (92° opening angle)Part No. 11015223 Bean container with lid

• Total connected load Total connected load 1.6 KW.
• Connection cable 1.7 m, pluggable.
• Plan a LAN cable.
• Power consumption standby/display off 0.5 W.
• Power consumption standby/network 2 W.
• Time auto-standby/display on 30 min.
• Time auto-standby/network 30 min.
• Please check the user manual for how to switch off the WiFi module.

• Please reference the built-in dimensions provided in the installation drawings
