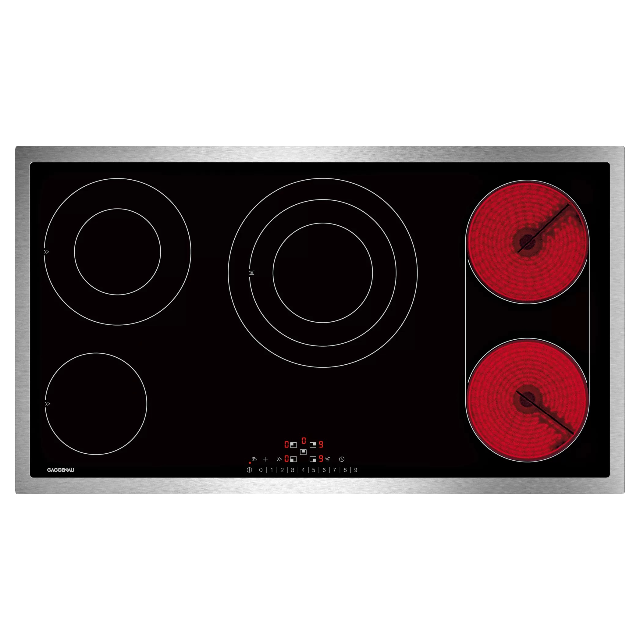

Gaggenau CE291111 - 200 series Glass Ceramic Cooktop 90 cm

 Cooking zones

• 2 Super-Quick cooking zones ø 18 cm (1800 W); together they convert to 18 x 41.5 cm (4400 W) roasting zone.
• 1 Super-Quick cooking zone ø 12 cm (750 W), converts to ø 21 cm (2100 W, with booster 2600 W) cooking zone.
• 1 Super-Quick cooking zone ø 14.5 cm (1050 W), converts to ø 21 cm (2200 W) or ø 27 cm (3080 W) cooking zone.
• 1 Super-Quick cooking zone ø 14.5 cm (1200 W, with booster 1600 W).

• Sensor control with direct selection of ouput level.
• Cooking zone marking.
• Electronic power control in Variable 17-stage power settings for each zone.

• Frying sensor function for ø 21 cm cooking zone.
• Booster function.
• Cooking timer for up to 99 minutes.
• Short-term timer.
• Options menu.

• Main switch.
• Operation indicator.
• 2 stage Hh residual heat indicator for each zone
• Child lock.
• Safety shut-off.

• Immersion depth 49 mm, depth at plug socket 50 mm.
• Under the plug socket, a 10 mm clearance must be observed from side panels or from intermediate shelf.
• The cooktop must be freely accessible from underneath to be able to detach the cooktop´s base in a downward direction.
• Installation possible in a 60 cm wide lower cabinet.
• Appliance must be fixed from underneath.
• Cooktop clamping range: 20 - 50 mm.
• Appliance weight: approx. 13.

• Total connected load 11.0 KW.
• Plan a connection cable.

• Please reference the built-in dimensions provided in the installation drawings
