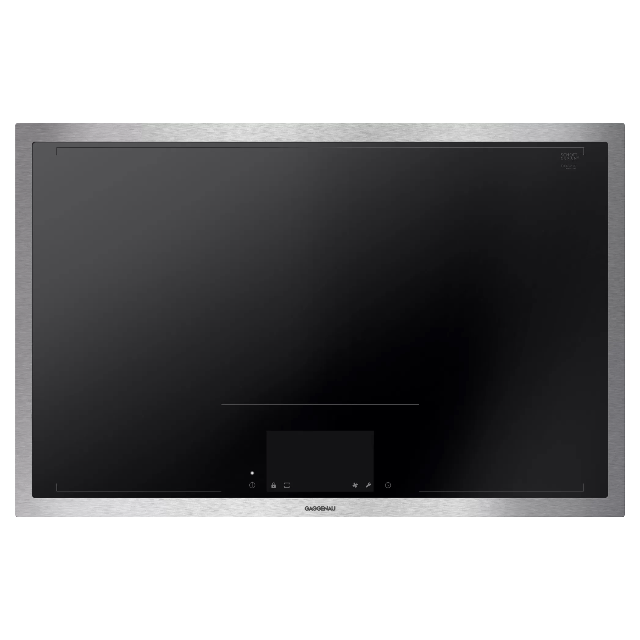

Gaggenau CX482111 - 400 series Full Surface Induction Cooktop 80 cm

 Cooking zones

• One unique cooking surface of 2750 cm².
• Up to 5 items of cookware can be placed simultaneously on the cooktop.

• Easy to use colour graphic TFT touch display with use indications.
• Electronic power control in Variable 17-stage power settings for each zone.

• Cooking sensor function.
• Professional cooking function.
• Dynamic cooking function.
• Teppan Yaki function.
• Booster function for pots.
• Booster function for pans.
• Keep warm function.
• Individual pot detection.
• Cooking timer for each cooking position.
• Stopwatch.
• Short-term timer.
• Information key with use indications.
• Power management.
• Cooktop-based ventilation control (with suitable hood).
• Integrated WiFi module for digital services(Home Connect).
• The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country “ for further information please check: www.home-connect.com

• Main switch.
• Residual heat indication.
• Child lock.
• Safety shut-off.
• Pause function.

• Depending on the type of installation (surface-mounted or flush-mounted), the specific definition of the cut-out must be observed.
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
• Additional instructions for flush installation:
• Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
• If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
• Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
• The wok pan WP 400 001 cannot be used with this appliance.
• Appliance can be snapped into the worktop from above.
• Appliance weight: approx. 27.

• Total connected load 7.4 KW.
• Connecting cable 1.5 m without plug.
• Power consumption standby/display off 0.5 W.
• Power consumption standby/network 2 W.
• Please check the user manual for how to switch off the WiFi module.

• Please reference the built-in dimensions provided in the installation drawings
