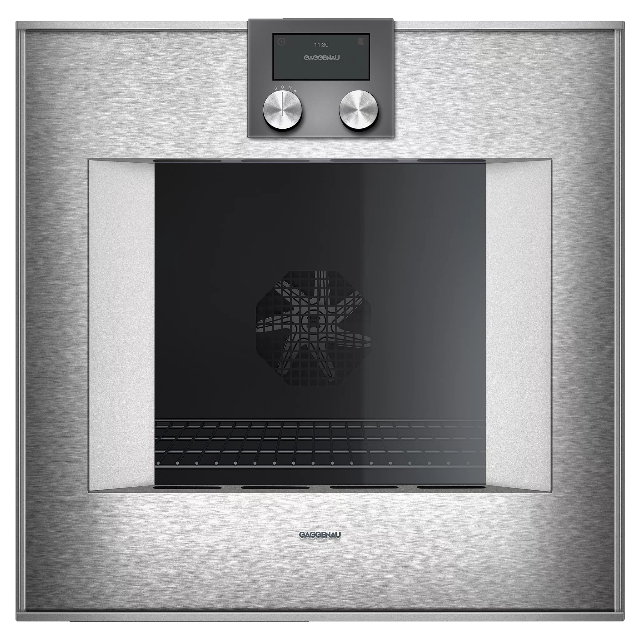

Gaggenau BO471112 - 400 series Oven 60 cm Left Hinged Stainless Steel

 Heating methods

• Hot air.Eco hot air.Top bottom heat.Top 1/3 bottom heat.Top heat.1/3 top bottom heat.Bottom heat.Hot air bottom heat.Hot air 1/3 bottom heat.Full surface grill circulated air.Full surface grill.Compact grill.Baking stone function.Roaster function.Dough proofing.Defrosting.Keeping warm.

• Automatic door opening.
• Rotary knob and TFT touch display operation.
• Clear text display.
• Option to save individual recipes (incl. core temperature probe).
• Personalisation of automatic programmes.
• Information key with use indications.
• Side-opening door opens up to 180° angle.

• Three-point core temperature probe with automatic shut-off and estimation of cooking time.
• Automatic programmes.
• Rotisserie spit.
• Baking stone socket.
• Actual temperature display.
• Rapid heating.
• Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer (certified by Star-K).
• 60 W halogen light on the top.
• 2 x 10 W halogen light on the side.
• Enamelled side shelf supports with 3 tray levels, pyrolysis-safe.
• Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
• The availability of the Home Connect functionality depends on the availability of the Home Connect Services in your country. Home Connect Services are not available in every country “ for further information please check: www.home-connect.com

• Thermally insulated door with quadruple glazing.
• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

• Pyrolytic system.
• Gaggenau enamel.
• Heated air cleaning catalyser.

• Door hinge not reversible.
• The façade of the appliance extends 47 mm from the furniture cavity.
• When planning a corner solution, pay attention to the 90° door opening angle.
• To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
• The main socket needs to be planned outside of the niche.
• The LAN port can be found at the back on the upper right side.

• Energy efficiency class A at a range of energy efficiency classes from A to D.
• Total connected load 3.7 KW.
• Plan a connection cable.
• Plan a LAN cable.
• Power consumption standby/display on 0.7 W.
• Power consumption standby/display off 0.5 W.
• Power consumption standby/network 1.4 W.
• Time auto-standby/display on 20 min.
• Time auto-standby/display off 20 min.#
• Time auto-standby/network 20 min.
• Please check the user manual for how to switch off the WiFi module.

• Please reference the built-in dimensions provided in the installation drawings
