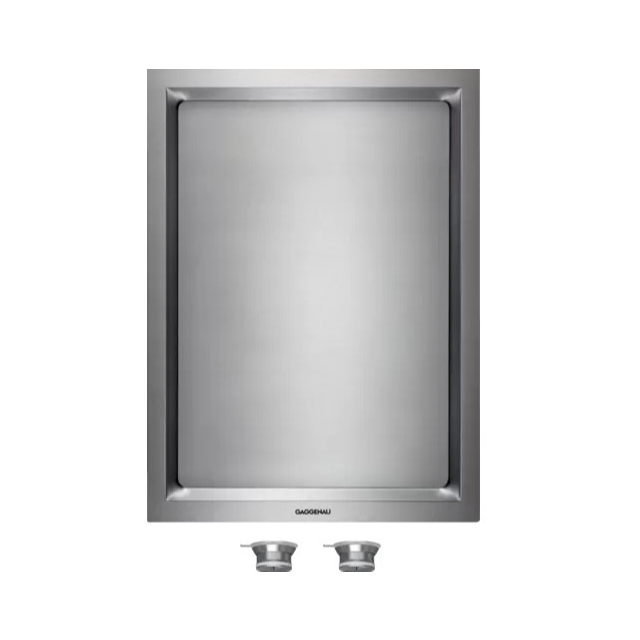

Gaggenau VP414111 - 400 series Vario Teppan Yaki 38 cm

 Cooking zones

• Usable area W 31 x D 44 cm.

• Control knobs with illuminated ring, cooking zone and temperature markings.
• Electronic temperature control from 120 °C to 240 °C.

• Two zones, each 1500 W, can be operated together as a complete surface or each halve separately.
• Keeping warm setting.
• Cleaning stage.
• Even with traces of use, always easy to clean like a cast pan.

• Safety shut-off.

• Depending on the type of installation (surface-mounted or flush-mounted, with or without an appliance cover), the specific location of the cut-out and the knob positions may vary.
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
• Additional instructions for flush installation:
• Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
• If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
• A minimum lateral clearance of at least 40 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
• Appliance can be snapped into the worktop from above.
• Appliance weight: approx. 12.

• Total connected load 3.0 KW.
• Connecting cable 1.5 m without plug.

• Please reference the built-in dimensions provided in the installation drawings
