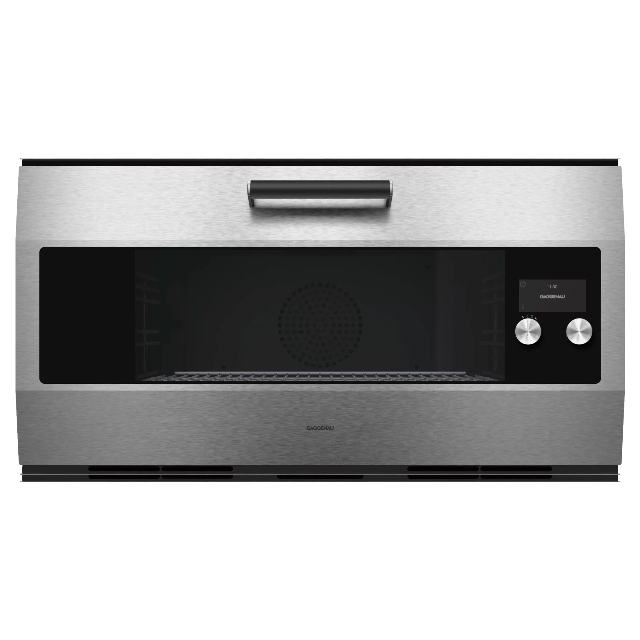

Gaggenau EB333111 - Built-In Oven 90 cm Stainless Steel

 Heating methods

• Hot air.Eco hot air.Top bottom heat.Top 1/3 bottom heat.Top heat.1/3 top bottom heat.Bottom heat.Hot air bottom heat.Hot air 1/3 bottom heat.Full surface grill circulated air.Full surface grill.Compact grill.Baking stone function.Roaster function.Dough proofing.Defrosting.Keeping warm.

• Rotary knob and TFT touch display operation.
• Clear text display.
• Option to save individual recipes (incl. core temperature probe).
• Information key with use indicators.
• Front-hinged door with 90° door opening angle.

• Rotisserie spit.
• Baking stone socket.
• Actual temperature display.
• Rapid heating.
• 60 W halogen light on the top.
• 2 x 10 W halogen light on the side.
• Enamelled side shelf supports with 3 tray levels, pyrolysis-safe.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

• Thermally insulated door with quintuple glazing.
• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

• Pyrolytic system.
• Gaggenau enamel.
• Heated catalyser to clean the oven air.

• The door panel surface of the appliance extends 40 mm from the furniture cavity.
• The outer edge of the door handle extends 90 mm from the furniture cavity.
• For installation underneath cooktops: Distance between the underside of the cooktop and the top edge of the oven cavity: min. 15 mm. The planning notes for the cooktops (particularly regarding ventilation, gas/electric connection) must be taken into account.
• To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the corner of the housing.
• The mains socket needs to be planned outside the built-in niche.

• Energy efficiency class A at a range of energy efficiency classes from A to D.
• Total connected load 5.4 KW.
• Plan a connection cable.
• Power consumption standby/display off 0.5 W.
• Power consumption standby/network 1.5 W.
• Time auto-standby/network 20 min.
• Please check the user manual for how to switch off the WiFi module.

• Please reference the built-in dimensions provided in the installation drawings
